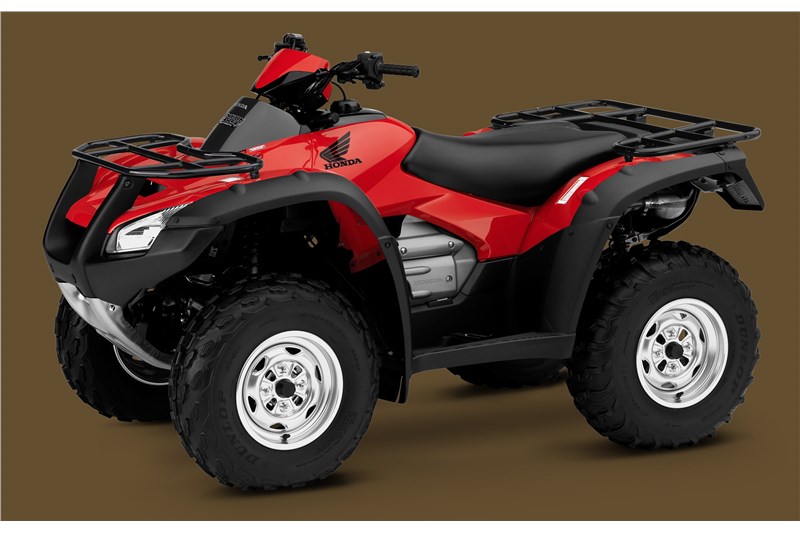

2018 Honda Four Trax Rincon

2018 Honda Four Trax Rincon
Red
MSRP: $9,399.00
Manufacturer: Honda
Condition: New
UTILITY ATVs ARE RECOMMENDED ONLY FOR RIDERS 16 YEARS OF AGE AND OLDER. ATVs CAN BE HAZARDOUS TO OPERATE. FOR YOUR SAFETY, BE RESPONSIBLE. READ THE OWNER’S MANUAL. ALWAYS WEAR A HELMET, EYE PROTECTION AND PROTECTIVE CLOTHING. BE CAREFUL ON DIFFICULT TERRAIN. ALL ATV RIDERS SHOULD TAKE A TRAINING COURSE (FREE FOR NEW BUYERS. ASK YOUR DEALER OR CALL ASI AT 800-887-2887). NEVER RIDE UNDER THE INFLUENCE OF DRUGS OR ALCOHOL, ON PAVED SURFACES, ON PUBLIC ROADS, WITH PASSENGERS, OR AT EXCESSIVE SPEEDS. NO STUNT RIDING. RESPECT THE ENVIRONMENT WHEN RIDING.

Description

Honda Four Trax Rincon

Ever since early man was living in a cave instead of out in the open, he’s been looking for ways to make life easier. Now we have flat-screen smart TVs and Wi-Fi internet—the ol’ cave is getting pretty cozy.

The same goes with all-terrain vehicles. Sure, you can buy one that meets the minimum requirements for some basic purposes. Or you can get smart and hook yourself up with a Honda Rincon, one of the most refined, smooth, comfortable ATVs to ever take on what mother nature has to offer.

The Rincon stands at the top of our ATV lineup. It’s built around our biggest ATV engine, and it’s a class-leader when it comes to comfort, ride quality, and innovation too.

As with any Honda, it all starts with the engine: a liquid-cooled 675cc single-cylinder featuring a twin-plug cylinder head. The longitudinal-crankshaft layout (a Honda innovation) means more power actually gets to the ground, so the Rincon can offer the real-world power of the competition’s bigger, heavier models.

Premium long-travel suspension, rugged bodywork, strong steel racks front and rear—the Rincon’s list of features just keeps going on and on. One thing you can’t see but becomes readily apparent is the Rincon’s all-day comfort, something serious ATV riders will appreciate. And then there’s just the way the Rincon looks: Strong. Purposeful. Like a flagship ATV should.

Comfort is about much more than taking life easy. With a comfortable ATV, you can stay in the saddle longer, see more, get more done, and pay more attention to what’s going on around you. The Rincon isn’t just the comfortable choice; it’s the smart choice.

Specifications

Engine

Engine Type
675cc liquid-cooled OHV semi-dry-sump longitudinally mounted single-cylinder four-stroke
Bore And Stroke
102mm x 82.6mm
Induction
Electronic fuel injection (PGM-FI), 40mm throttle bodies
Ignition
Full-transistorized type with electronic advance
Starter
Electric with auxiliary recoil


Drive Train

Transmission
Automatic with hydraulic torque converter, three forward gears, Reverse, and electronic controls
Driveline
Direct front and rear driveshafts with TraxLok® and torque-sensitive front differential


Chassis/ Suspension/ Brakes

Front Suspension
Independent double-wishbone; 6.9 inches travel
Rear Suspension
Independent double-wishbone; 8.0 inches travel
Front Brakes
Dual hydraulic 180mm disc
Rear Brakes
Single hydraulic disc
Front Tires
25 x 8-12
Rear Tires
25 x 10-12


Dimensions

Length
83.2 inches
Width
46.8 inches
Height
47.5 inches
Wheelbase
50.8 inches
Seat Height
34.5 inches
Ground Clearance
9.1 inches
Curb Weight
657 pounds (Red - aluminum wheels); 669 pounds (Honda Phantom Camo®, Black - steel wheels)
Fuel Capacity
4.4 gallons, including 1.2-gallon reserve
Turning Radius
10.8 feet


Other

Model ID
TRX680FA
Emissions
Meets current California Air Resources Board (CARB) off-road emissions standards.
Available Colors
Red, Honda Phantom Camo®
Note
No operator under age 16. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.


Factory Warranty Information

One Year
Transferable limited warranty; extended coverage available with a Honda Protection Plan.


Features

Semi Dry Sump Engine

  • Compact and lighter-weight, the Rincon’s overhead-valve, semi-dry-sump design creates an engine that's shorter from top to bottom. That returns two big benefits: it enhances handling by lowering the engine's center of gravity, and it also allows for greater ground clearance.

Electrical Output

  • Thanks to the neodymium-magnet stator design, the powerful ACG produces sufficient amount of electricity, so you can run more Honda Accessories.

Catalytic Converter

  • Cars and trucks have had them for decades now—and the Rincon features one as well. People who work outdoors or who enjoy nature know you’ve got to protect the planet—and the Rincon is doing its part.

Dual Plug Head

  • Using two spark plugs that fire together helps ensure clean, fast, thorough combustion. It’s a win-win situation: The engine runs cleaner, with greater fuel-efficiency and range.

Longitudinal Engine Layout

  • By orienting the crankshaft front to back in the chassis in our ATV and side-by-side engines, we route the flow of power straight to the wheels without any unnecessary right-angle detours, reducing powertrain friction and putting more grunt to the ground.

Traxx Lock

  • TraxLok® lets you select either two-wheel drive or four-wheel drive. Two-wheel drive gives you lighter steering on flat ground, while four-wheel drive maximizes available traction when you need it. Choosing between them couldn't be easier, and you get the best of both worlds.

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
