2018 Honda Four Trax Foreman 4X4 ES EPS

2018 Honda Four Trax Foreman 4X4 ES EPS

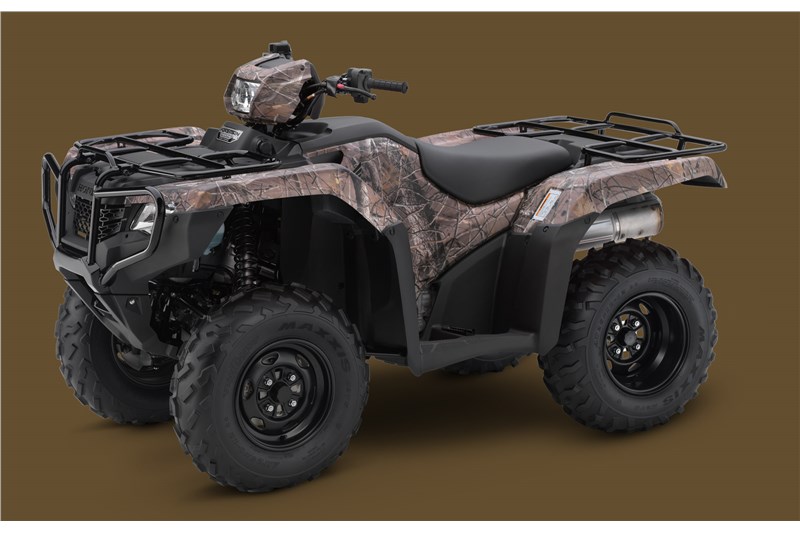

Phantom Camo
MSRP: $8,499.00
Manufacturer: Honda
Condition: New
UTILITY ATVs ARE RECOMMENDED ONLY FOR RIDERS 16 YEARS OF AGE AND OLDER. ATVs CAN BE HAZARDOUS TO OPERATE. FOR YOUR SAFETY, BE RESPONSIBLE. READ THE OWNER’S MANUAL. ALWAYS WEAR A HELMET, EYE PROTECTION AND PROTECTIVE CLOTHING. BE CAREFUL ON DIFFICULT TERRAIN. ALL ATV RIDERS SHOULD TAKE A TRAINING COURSE (FREE FOR NEW BUYERS. ASK YOUR DEALER OR CALL ASI AT 800-887-2887). NEVER RIDE UNDER THE INFLUENCE OF DRUGS OR ALCOHOL, ON PAVED SURFACES, ON PUBLIC ROADS, WITH PASSENGERS, OR AT EXCESSIVE SPEEDS. NO STUNT RIDING. RESPECT THE ENVIRONMENT WHEN RIDING.

Description

Honda Four Trax Foreman 4X4 ES EPS

Features & Options

  • All Foreman 4x4 features
  • Adds: Electric Shift Program
  • Adds: Electric Power Steering

You’re always ready to get up at dawn and won’t stop working until the job is done right. The Honda Foreman is no different. That’s because our engineers work tirelessly to make sure our ATVs can handle a wide variety of tasks and adventures, big, small, tough or fun.

The Foreman has long been Honda’s real workhorse, and plenty of riders find it the perfect size for both work and fun. It’s strong, rugged, famously reliable. Plus, its superior Honda engineering means you get more performance out of this ATV than some of the competition’s bigger and heavier models.

The soul of this go-to tool is its proven fuel injected 500-class engine that delivers plenty of power and fuel efficiency. The strong, refined chassis offers a long suspension stroke for a smooth and nimble ride that’s perfect for rough terrain. The Foreman’s driveline works hard for you by maximizing front-end power transfer and traction. And finally, all of these features are wrapped up in some tough, aggressively styled bodywork and new color choices for 2018. This package really works.

Specifications

Engine

Engine Type
475cc liquid-cooled OHV longitudinally mounted single-cylinder four-stroke
Bore And Stroke
92mm x 71.5mm
Induction
Keihin® 36mm throttle body
Ignition
Full-transistorized type with electronic advance
Starter
Electric with optional auxiliary recoil
Compression Ratio
9.5:1


Drive Train

Clutch
Automatic
Transmission
Five-speed with Reverse
Driveline
Direct front and rear driveshafts with TraxLok® and front differential lock


Chassis/ Suspension/ Brakes

Front Suspension
Independent double-wishbone; 7.28 inches travel
Rear Suspension
Swingarm with single shock; 7.28 inches travel
Front Brakes
Dual hydraulic 190mm disc
Rear Brakes
Sealed 160mm mechanical drum
Front Tires
25 x 8-12
Rear Tires
25 x 10-12


Dimensions

Length
82.8 inches
Width
47.4 inches
Height
48.0 inches
Wheelbase
49.9 inches
Seat Height
34.2 inches
Ground Clearance
7.5 inches
Curb Weight
630 pounds (includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Fuel Capacity
3.9 gallons, including 1.3-gallon reserve
Turning Radius
10.5 feet


Other

Model ID
TRX500FM1
Emissions
Meets current California Air Resources Board (CARB) and EPA off-road emissions standards.
Available Colors
Red, Olive, Shale Blue
Note
Recommended for riders 16 years of age and older.


Factory Warranty Information

One Year
Transferable limited warranty; extended coverage available with a Honda Protection Plan.


Features

Styling

  • Our Foreman models’ bodywork gives these ATVs a tough look. But it does more than just look good: it's designed to last, shrugging off the scrapes and dings of the job or the woods. It also helps protect you from mud and other debris.

Electronic Differential Lock

  • When you’re in 4WD mode and you need to get the power to both front wheels, just flip the switch on our electronic differential lock to maximize available traction. The vehicle display will tell you when the diff lock is fully engaged.

Swing Arm Suspension

  • The Foreman’s 4x4 rear swingarm with its solid axle provides superior capability for towing and hauling. Its long suspension stroke and plush seat let you tackle your favorite trail or the toughest chores in comfort all day long.

Liquid Cooling

  • Our time-tested Honda engine is liquid-cooled to provide more consistent operating temperatures and more power than a comparable air-cooled engine. This adds up to better performance and longer engine life.

Longitudinal Engine Layout

  • By orienting the engine crankshaft front to back, we route the flow of power straight to the wheels without any unnecessary right-angle detours, reducing powertrain friction and putting more grunt to the ground.

Easy Service Access

  • The Foreman’s body styling is not only aggressive, it’s functional. It features a tank and side covers that come off in one piece and without using any tools. That means quick and easy access to the engine.

Powerful ACG Outlet

  • An alternator offering extra output means the Foreman is capable of handling more of your accessory power needs.

Fuel Injection

  • By incorporating an oxygen sensor into the system, the Foreman delivers both better fuel efficiency and lower emissions. The ECU instantly adjusts the fuel injection mapping to match riding conditions for maximum fuel efficiency. The result: more time on the trail and more money in your pocket.

Semi-Dry-Sump Engine Design

  • Compact and light-weight, the Foreman's overhead-valve, semi-dry-sump design creates an engine that's not only shorter from top to bottom, but one that enhances handling by lowering the center of gravity and increasing ground clearance

Comfortable Seat

  • A plush seat and open rider triangle (bars/seat/pegs) teams up with the suspension to really treat you right. Superior ergonomics have always been a Honda priority, and the Foreman is no exception. With thick, soft foam, it’s supremely comfortable

Superior Carrier Capacity

  • With strong, steel carriers front and rear, and with both offering increased capacity than earlier models, the Foreman is ready to carry what you need.

Easy-to-Use Reverse Lever

  • Need to get out of a tight spot? The Foreman sports a special reverse lever mechanism that’s designed to be simple to use. Its intuitive design makes it quick and easy to operate.

Digital Meter

  • In addition to the basics, the Foreman’s instrument panel offers extra information: a clock, water temperature gauge, our “maintenance minder” system and indicator for the electronic differential lock.

TraxLok

  • Our rock-solid TraxLok® system lets you select either 2WD or 4WD, giving you the freedom to choose between lighter steering (in 2WD) and maximizing available traction (in 4WD) when you need it most.

Independent Assist Light

  • The 45-watt assist light runs independently of the headlights so you can turn it on when you need it, and turn it off when you don’t.

35W Headlight

  • Your exploring or work doesn’t have to stop when the sun goes down. Powerful twin headlights offer excellent illumination for the task at hand.
