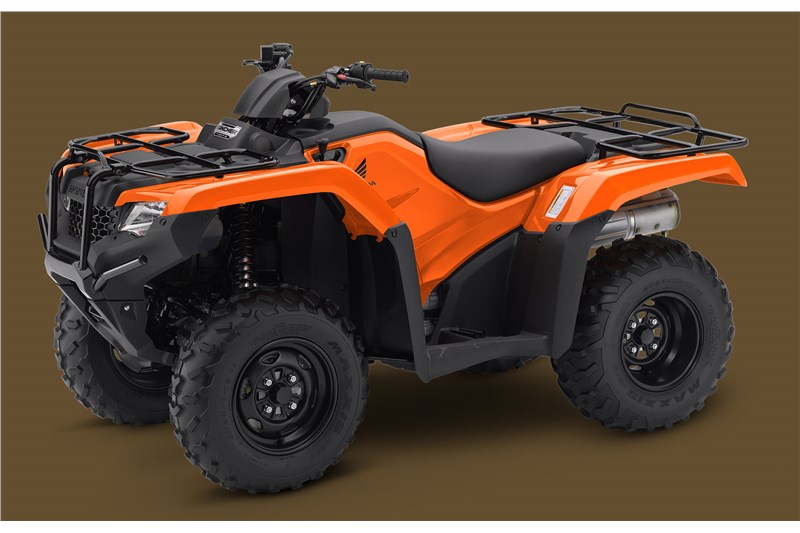

2018 Honda Four Trax Rancher 4X4

2018 Honda Four Trax Rancher 4X4
Orange
MSRP: $6,399.00
Manufacturer: Honda
Condition: New
UTILITY ATVs ARE RECOMMENDED ONLY FOR RIDERS 16 YEARS OF AGE AND OLDER. ATVs CAN BE HAZARDOUS TO OPERATE. FOR YOUR SAFETY, BE RESPONSIBLE. READ THE OWNER’S MANUAL. ALWAYS WEAR A HELMET, EYE PROTECTION AND PROTECTIVE CLOTHING. BE CAREFUL ON DIFFICULT TERRAIN. ALL ATV RIDERS SHOULD TAKE A TRAINING COURSE (FREE FOR NEW BUYERS. ASK YOUR DEALER OR CALL ASI AT 800-887-2887). NEVER RIDE UNDER THE INFLUENCE OF DRUGS OR ALCOHOL, ON PAVED SURFACES, ON PUBLIC ROADS, WITH PASSENGERS, OR AT EXCESSIVE SPEEDS. NO STUNT RIDING. RESPECT THE ENVIRONMENT WHEN RIDING.

Description

Honda Four Trax Rancher 4X4

Features & Options

  • All Rancher features
  • Adds: TraxLok 2WD/4WD
  • Adds: Digital Meter

Every Rancher here features a powerful 420cc liquid-cooled engine. So first, choose between two-wheel or four-wheel-drive. Then, based on your usage, choose a rear suspension—Independent Rear Suspension or Swingarm. Next, decide what kind of transmission you want—standard ATV manual shifting, Honda’s Electric Shift Program (ESP) or the Honda Automatic DCT. Then look into the other features, and pretty soon your Rancher will fit you like a hand-tailored suit—but one that’s built to work as hard as you do.

For decades now, Honda’s line of Rancher all-terrain vehicles has pretty much been where the search for the perfect mid-size ATV starts and ends. And it’s easy to see why so many thousands of Rancher owners know they’ve made the right choice. With a variety of models and options, it’s easy to get the features you want. Plus, the Rancher just hits that sweet spot in terms of size and performance.

Every Rancher starts with the same proven Honda engine, the heart of any ATV. A 420cc liquid-cooled single-cylinder design with fuel injection, it’s engineered for the kind of wide, low-revving power an ATV rider wants. And it offers something no other ATV can: Honda’s legendary reliability and efficiency.

After that, the mix-and-match of features is up to you. We have models with independent rear suspension (IRS) for excellent handling and a superior ride. We also have swingarm/solid-axle models suited to riders who tow a lot, or who want a solid axle’s simplicity of design. Standard manual ATV transmission, our exclusive Electric Shift Program, or Honda’s revolutionary Automatic Dual Clutch Transmission (DCT) are all available, as is Electric Power Steering and your choice between two- and four-wheel drive.

Specifications

Engine

Engine Type
420cc liquid-cooled fuel-injected OHV wet-sump longitudinally mounted single-cylinder four-stroke
Bore And Stroke
86.5mm x 71.5mm
Induction
Keihin® 34mm throttle-body fuel-injection system
Ignition
Full-transistorized type with electronic advance
Starter
Electric with optional auxiliary recoil
Compression Ratio
9.9:1


Drive Train

Clutch
Automatic
Transmission
Five-speed with Reverse
Driveline
Direct front and rear driveshafts with TraxLok® and torque-sensitive front differential


Chassis/ Suspension/ Brakes

Front Suspension
Independent double-wishbone; 6.69 inches travel
Rear Suspension
Swingarm with single shock; 6.69 inches travel
Front Brakes
190mm Dual hydraulic disc
Rear Brakes
160mm Sealed mechanical drum
Front Tires
24 x 8-12
Rear Tires
24 x 10-11


Dimensions

Length
82.8 inches
Width
47.4 inches
Height
46.2 inches
Wheelbase
49.9 inches
Seat Height
33.7 inches
Ground Clearance
7.2 inches
Curb Weight
608 pounds (includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Fuel Capacity
3.9 gallons, including 1.3-gallon reserve
Turning Radius
9.2 feet


Other

Model ID
TRX420FM1
Emissions
Meets current California Air Resources Board (CARB) and EPA off-road emissions standards.
Available Colors
Red, Olive, Orange
Note
No operator under age 16. Honda recommends that all ATV riders take a training course and read their owners manual thoroughly.


Factory Warranty Information

One Year
Transferable limited warranty; extended coverage available with a Honda Protection Plan


Features

Digital Instruments

  • Easy to read and full of the information you want. In addition to the standard gear position indicator, speedometer, odometer, trip meter, and hour meter—you get readouts for fuel level, clock, water temperature, speed and Honda’s “maintenance minder” system (to help remind you when it’s time to have your ATV serviced). Comes with all Ranchers except base model.

TraxLok Selectable 2WD/4WD

  • Our rock-solid system lets you choose either 2WD or 4WD instantly, giving you the freedom to choose between lighter steering (in 2WD) and maximizing available traction (in 4WD) when you need it most.

In Tank Fuel Pump

  • The Rancher incorporates an in-tank fuel pump for cooler pump operation, and long pump life.

Comfortable Seat

  • A plush seat and open rider triangle (bar/seat/pegs) teams up with the suspension to really treat you right. Superior ergonomics have always been a Honda priority, and the Rancher is no exception. With thick, soft foam, it’s exceptionally comfortable.

Shaft Drive

  • Clean, efficient, proven, low-maintenance. Shaft drive is the perfect choice for a machine like this, and for riders who pile on the miles. You never have to worry about lubrication or adjustment out on the trail. And an added plus: it helps keep your ATV cleaner, too.

Reverse Lever

  • The Rancher’s reverse lever is simple, easy and intuitive to use.

Longitudinal Engine Layout

  • By orienting the crankshaft front to back in the chassis in our ATV and side-by-side engines, we route the flow of power straight to the wheels without any unnecessary right-angle detours, reducing powertrain friction and putting more grunt to the ground.

Semi Dry Sump Engine

  • Compact and lighter-weight, the Rancher’s overhead-valve, semi-dry-sump design creates an engine that's shorter from top to bottom. That returns two big benefits: it enhances handling by lowering the engine's center of gravity, and it also allows for better ground clearance.

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
